Hyundai Ioniq (AE): Front Seat Belt / Height Adjust. Components and components location

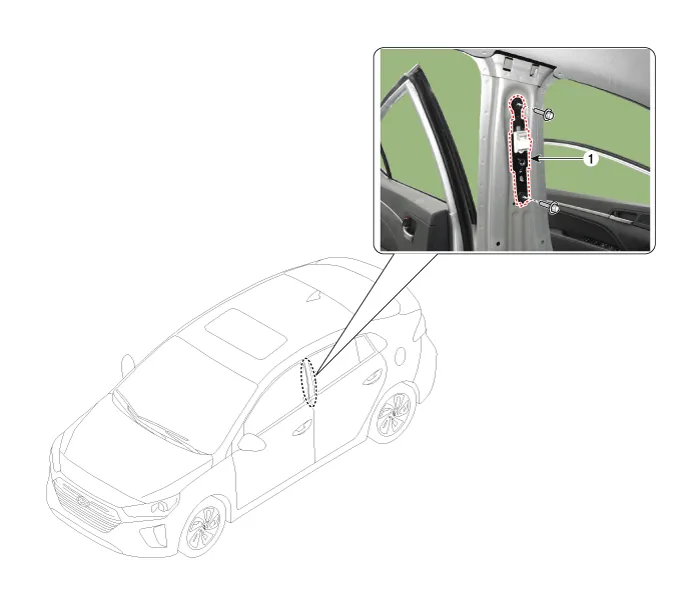

| Component Location |
| 1. Height adjust |
Replacement • When installing the belt, make sure not to damage the pretensioner.1.Remove the center pillar upper trim.
Replacement1.Remove the front seat belt upper anchor.(Refer to Front Seat Belt - "Front Seat Belt Pretensioner")2.After loosening the mounting bolts, remove the height adjust (A).
