Hyundai Ioniq (AE): Front Seat Belt / Front Seat Belt Pretensioner. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Pretensioner. Repair procedures

Replacement

•
When installing the belt, make sure not to damage the pretensioner.
1.
Remove the center pillar upper trim.
(Refer to Interior Trim - "Center Pillar Trim")
2.

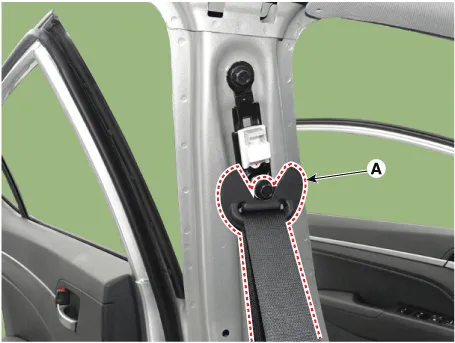

After loosening the front belt upper anchor mounting bolt, remove the front belt upper anchor (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

3.

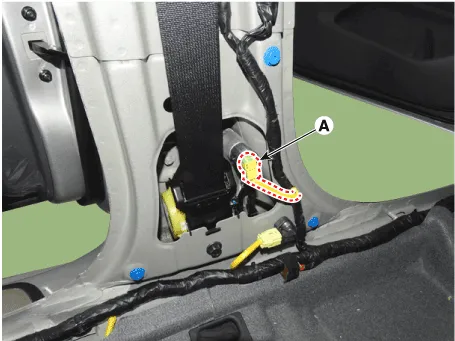

Disconnect the front seat belt pretensioner connector (A)

4.

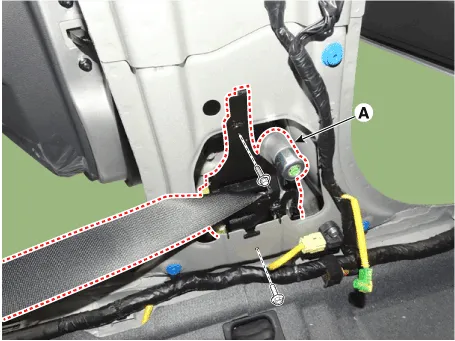

Loosen the mounting bolt and removing the front seat belt pretensioner (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

5.
To install, reverse the removal procedure.

•
After installing the front seat belt retractor, check that the air bag warning indicator illuminates for about 6 seconds when the ignition is ON and then goes out.
•
Make sure the connector is plugged in properly.
•
Replace any damaged clips (or pin-type retainers).
