Hyundai Ioniq (AE): Fuses And Relays / ICM (Integrated Circuit Module) Relay Box. Description and operation

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / Fuses And Relays / ICM (Integrated Circuit Module) Relay Box. Description and operation

Description

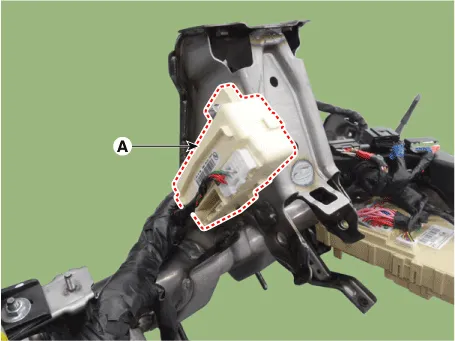

The ICM is united with many kinds of relays and installed over the instrument panel box.

    Fuse Inspection1.Be sure there is no play in the fuse holders, and that the fuses are held securely.2.Are the fuse capacities for each circuit correct?3.

    InspectionOut Side Mirror Folding RelayCheck for continuity between the terminals.1.There should be continuity between the No.17 and No.16 terminals when power and ground are connected to the No.
