Hyundai Ioniq (AE): Immobilizer System / Immobilizer Control Unit. Repair procedures
| Removal |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the main crash pad assembly. (Refer to Body - "Main Crash Pad Assembly") |

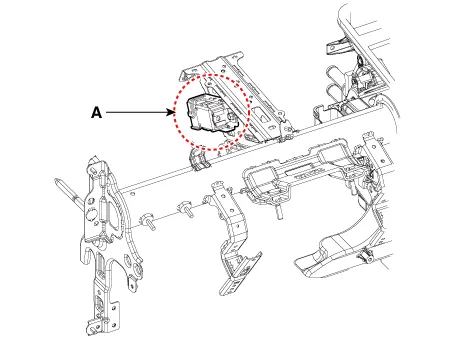

| 3. | Discnnect the connector of the immobilizer unit and then remove the immobilizer unit (A) after loosening a nut.
|
| Installation |
| 1. | Install the immobilizer control unit after connecting the unit connector. |
| 2. | Install the main crash pad assembly. |
| 3. | Connect the negative (-) battery terminal. |
Teaching Procedures1.Key Teaching ProcedureKey teaching must be done after replacing a defective PCM (ECM) or when providing additional keys to the vehicle owner.
Removal1.Disconnect the negative (-) battery terminal.2.Remove the steering column shroud panel.(Refer to Body - "Steering Column Shroud Panel")3.Disconnect the 6P connector (B) of the coil antenna and then remove the coil antenna (A) after loosening the screw.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: emperature Control Actuator. Repair procedures
Inspection1.Turn the ignition switch OFF.2.Disconnect the temperature control actuator connector.3.Verify that the temperature control actuator operates to the cool position when connecting 12V to terminal 3 and grounding terminal 7.Verify that the temperature control actuator operates to the warm position when connected in reverse.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Front Radar Unit. Repair procedures
Removal1.Remove the front bumper.(Refer to Body - "Front Bumper")2.Disconnect the smart cruise control unit connector (A).3.Remove the smart cruise control nuit assembly (B) from thevehicle after loosening mounting bolts.Installation1.Install in the reverse order of removal.
