Hyundai Ioniq (AE): Immobilizer System / Antenna Coil. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / Immobilizer System / Antenna Coil. Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the steering column shroud panel.
(Refer to Body - "Steering Column Shroud Panel")
3.

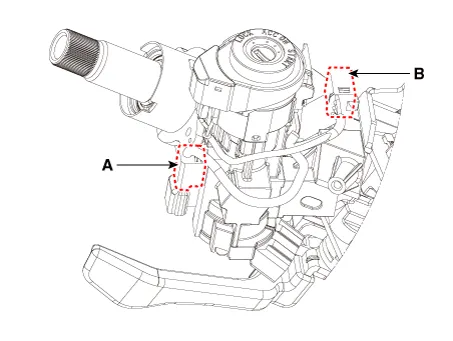

Disconnect the 6P connector (B) of the coil antenna and then remove the coil antenna (A) after loosening the screw.

Installation
1.
Install the coil antenna and connect the 6P connector.
2.
Install the steering column shroud panel.
3.
Connect the negative (-) battery terminal.

    Removal1.Disconnect the negative (-) battery terminal.2.Remove the main crash pad assembly.(Refer to Body - "Main Crash Pad Assembly")3.Discnnect the connector of the immobilizer unit and then remove the immobilizer unit (A) after loosening a nut.

    Other information:

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Mode Control Actuator. Description and operation

    DescriptionThe mode control actuator is located at the heater unit.It adjusts the position of the mode door by operating the mode control actuator based on the signal of the A/C control unit. Pressing the mode select switch makes the mode control actuator shift in order of Vent → Bi-Level → Floor → Mix.

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Intake Actuator. Repair procedures

    Inspection1.Turn the ignition switch OFF.2.Disconnect the intake actuator connector.3.Verify that the intake actuator operates to the fresh position when connecting 12V to terminal 3 and grounding terminal 4.Verify that the intake actuator operates to the recirculation position when connected in reverse.
