Hyundai Ioniq (AE): Airbag Module / Knee Airbag (KAB) Module. Components and components location

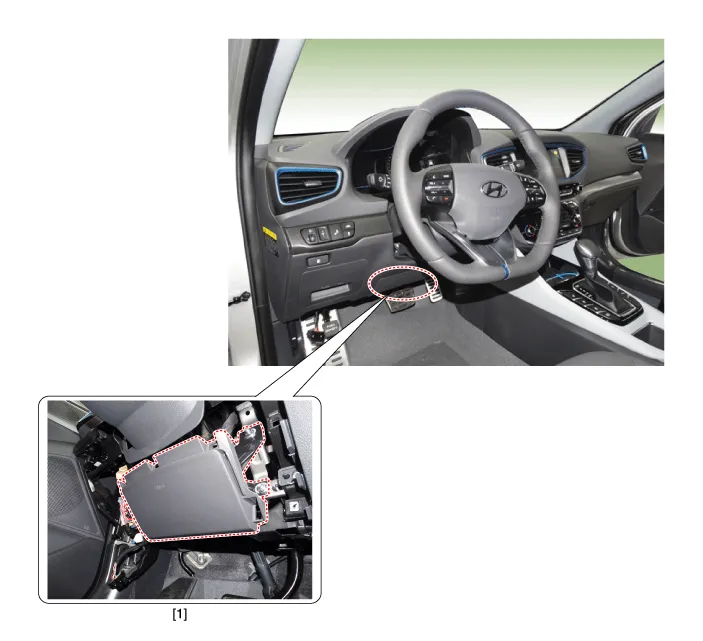

| Components |
| 1. Knee Airbag (KAB) |
DescriptionThe Knee Airbag (KAB) is installed inside the crash pad lower panel and protects the driver in the event of a frontal crash. The SRSCM determines if and when to deploy the KAB.
Removal1.Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.2.Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel")3.
