Hyundai Ioniq (AE): Engine Control System / Knock Sensor (KS). Schematic diagrams

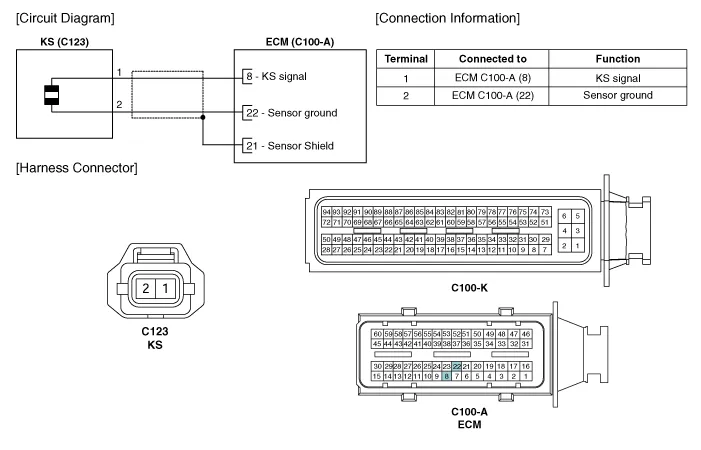

| Circuit Diagram |
Specification Item Specification Capacitance (pF)850 - 1,150
Removal 1.Turn the ignition switch OFF and disconnect the battery negative (-) cable.2.Remove the intake manifold. (Refer to Engine Mechanical System - "Intake Manifold")3.
