Hyundai Ioniq (AE): Parking Brake System / Parking Brake Assembly. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Brake System / Parking Brake System / Parking Brake Assembly. Components and components location

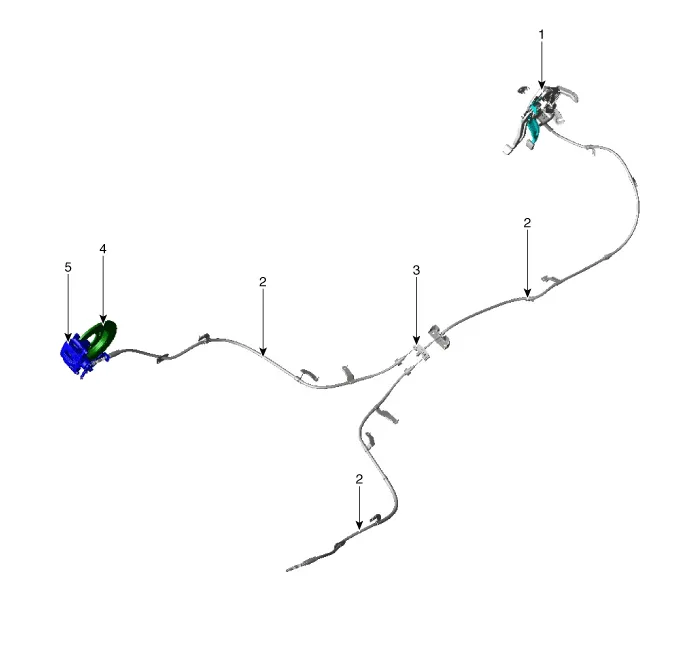

Components

1. Parking brake pedal
2. Parking brake cable
3. Equalizer assembly
4. Brake disc
5. Brake caliper

    RemovalParking Brake Pedal1.Disconnect the negative (-) battery cable.2.Remove the crash pad lower panel.(Refer to Body - "Crash Pad")3.Remove the junction box.
