Hyundai Ioniq (AE): Parking Brake System / Parking Brake Pedal Assembly. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Brake System / Parking Brake System / Parking Brake Pedal Assembly. Repair procedures

Removal
Parking Brake Pedal
1.
Disconnect the negative (-) battery cable.
2.
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad")
3.
Remove the junction box.
(Refer to Body Electrical System - "Fuses and Relays")
4.

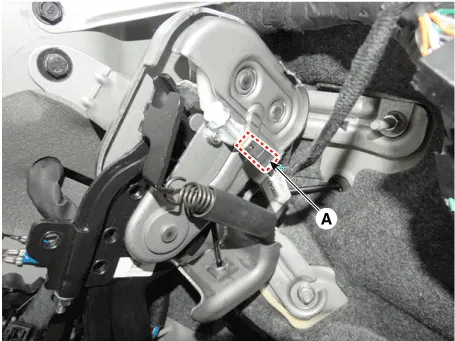

Disconnect the parking brake switch connector (A).

5.

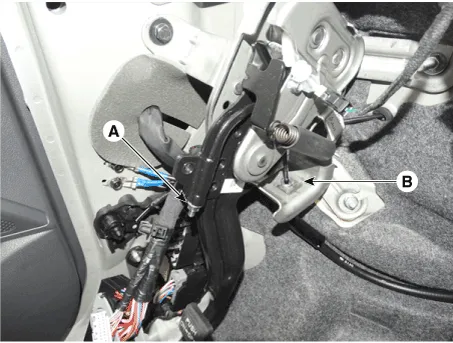

Remove the parking brake cable adjusting nut (A) and the fixing clip (B), and then remove the parking cable from the brake pedal.
Tightening torque :
19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)

6.

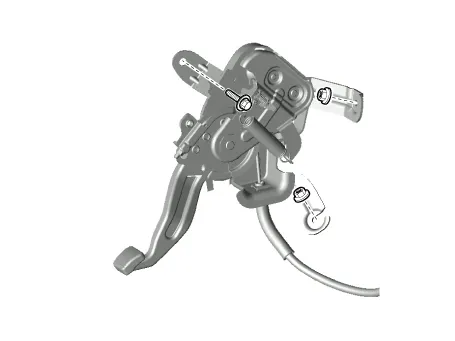

Remove the parking brake pedal mounting bolts and nut.
Tightening torque
Bolt : 8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
Nut : 9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb-ft)

7.
Install in the reverse of removal.
8.
Adjust the parking brake pedal stroke.
(1)
Operate the parking brake pedal through a full stroke over 3 times for setting the parking cables.
(2)
Adjust the adjusting nut for parking brake pedal stroke 6-7 notches when operating effort is 294N(30kgf,216lb).

1)
The parking brake adjustment must be carried out after adjusting the rear shoe.
2)
After adjusting parking brake, notice following matter.
a.
Must be free from clearance between adjusting nut and pin.
b.
Check securely that the brake is not dragging.
