| Inspection |

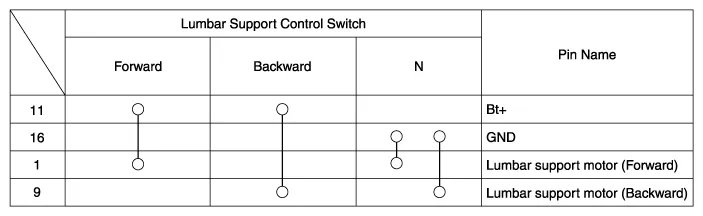

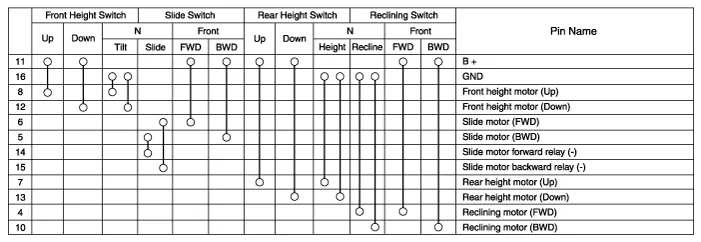

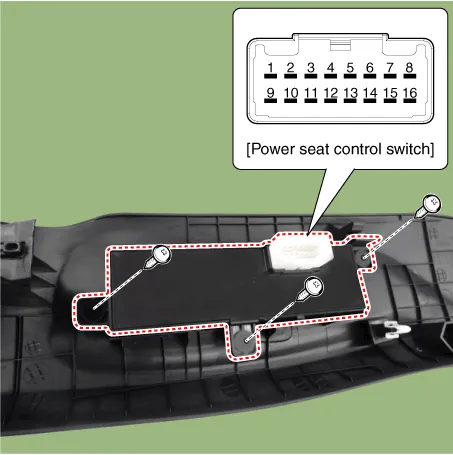

| 1. | With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.
[Power Seat Control Switch]
|
| Removal |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the front seat outer shield cover. (Refer to Body - "Front Seat Outer Shield Cover") |

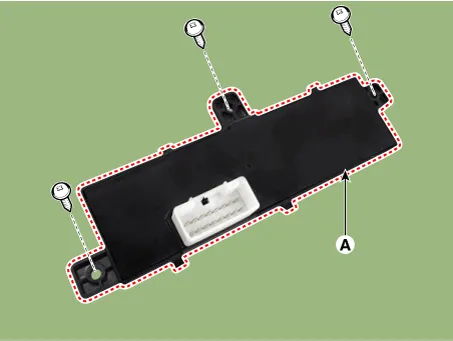

| 3. | Remove the power seat control switch (A) after loosening the screws.
|
| Installation |
| 1. | Install the power seat control switch after connecting the connector. |
| 2. | Install the front seat outer shield cover. |
| 3. | Connect the negative (-) battery terminal. |
