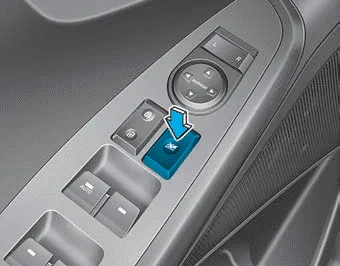

Hyundai Ioniq. Power window lock switch

The driver can disable the power window switches on the rear passenger's doors by pressing the power window lock switch.

When the power window lock switch is pressed:

  • The driver's master control can operate all the power windows.
  • The front passenger's control can operate the front passenger's power window.
  • The rear passenger's control cannot operate the rear passenger's power window.

WARNING

Do not allow children to play with the power windows. Keep the driver's door power window lock switch in the LOCK position. Serious injury or death can result from unintentional window operation by a child.

NOTICE

  • To prevent possible damage to the power window system, do not open or close two windows or more at the same time. This will also ensure the longevity of the fuse.
  • Never try to operate the main switch on the driver's door and the individual door window switch in opposite directions at the same time. If this is done, the window will stop and cannot be opened or closed.

    To open: Press the window switch down to the first detent position (5). Release the switch when you want the window to stop. To close: Pull the window switch up to the first detent position (5).

    If your vehicle is equipped with a sunroof, you can slide or tilt your sunroof with the sunroof control switch located on the overhead console. The sunroof can only be opened, closed, or tilted when the Engine Start/Stop button is in the ON position.
