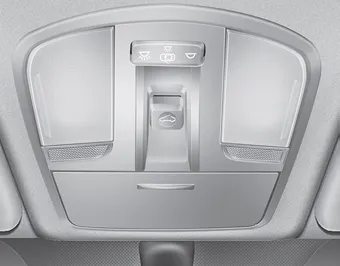

If your vehicle is equipped with a sunroof, you can slide or tilt your sunroof with the sunroof control switch located on the overhead console.
The sunroof can only be opened, closed, or tilted when the Engine Start/Stop button is in the ON position.
The sunroof can be operated for approximately 30 seconds after the Engine Start/Stop button is placed in the ACC or OFF position.
However, if the front door is opened, the sunroof cannot be operated even within 30 seconds.
Information
WARNING
NOTICE
The driver can disable the power window switches on the rear passenger's doors by pressing the power window lock switch. When the power window lock switch is pressed: The driver's master control can operate all the power windows.
To open: Press the sunroof control lever backward to the first detent position. Release the switch when you want the sunroof to stop. To close: Press the sunroof control lever forward to the first detent position.
Component Location1. Heater unit assemblyCompoents1. Heater core cover2. Heater core & Seal assembly3. Mode actuator [LH]4. Temperature control actuator [LH]5. Shower duct [LH]6. Duct sensor [Floor]7. PTC Heater8. Duct sensor [Vent]9. Heater & Evaporator lower case10.
InspectionOperating Logic Test (Manual only)Inspect the PTC operation by confirmation logic as follows.1.Entering(1)Set the Floor mode and maximum heating position.(2)Turn off the blower switch.(3)Press the intake (recirculation) button 5 times or more.
