Hyundai Ioniq (AE): Sunroof / Sunshade

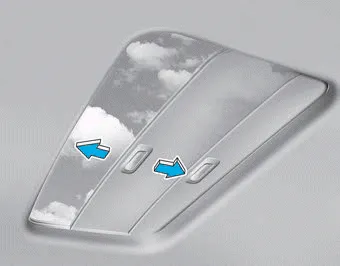

The sunshade will open automatically with the sunroof when the glass panel moves. If you want it closed, move the sunshade manually.
NOTICE
The sunroof is made to slide together with the sunshade. Do not leave the sunshade closed while the sunroof is open.
Tilt the sunroof open: Push the sunroof control lever upward until the sunroof moves to the desired position. To close the sunroof: Push the sunroof control lever forward until the sunroof moves to the desired position.
The sunroof may need to be reset if the following conditions occur: - The battery is discharged or disconnected or the sunroof fuse has been replaced or disconnected - The sunroof control lever is not operating correctly To reset the sunroof, perform the following steps: 1.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Photo Sensor. Description and operation
Description The photo sensor is located at the center of the defrost nozzles.The photo sensor contains a photovoltaic (sensitive to sunlight) diode. The solar radiation received by its light receiving portion, generates an electromotive force in proportion to the amount of radiation received which is transferred to the automatic temperature control
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Climate Control Air Filter. Repair procedures
Replacement1.Disconnect the air damper (A) from the glove box (B).2.Remove the stopper (B) from the glove box (A).3.Remove the filter cover (A) by pressing the knob.4.Replace the air filter (A) with a new one according to the direction of air filter. • To remove the filter easily, press the right side inwa
