Hyundai Ioniq (AE): Engine Control System / Purge Control Solenoid Valve (PCSV). Schematic diagrams

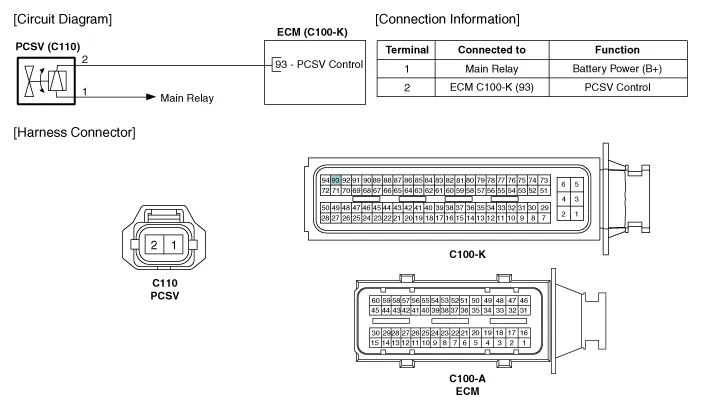

| Circuit Diagram |
Specification Item Specification Coil Resistance (Ω)22.0 - 26.0 [20°C (68°F)]
Inspection1.Turn the ignition switch OFF.2.Disconnect the PCSV connector.3.Measure resistance between the PCSV terminals 1 and 2.4.Check that the resistance is within the specification.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Evaporator Core. Repair procedures
Replacement1.Disconnect the negative (-) battery terminal. 2.Remove the heater and blower assembly.(Refer to Heater - "Heater Unit") 3.Remove the evaporator core cover (A) after loosening the mounting screws.4.Pull out the evaporator temperature sensor (A) from the evaporator core.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Description and operation
DescriptionRear view monitor (RVM) will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position.This system is a supplemental system that shows behind the vehicle through the AV monitor while backing-up. • This system is a supplementary function only.
