Removal
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.

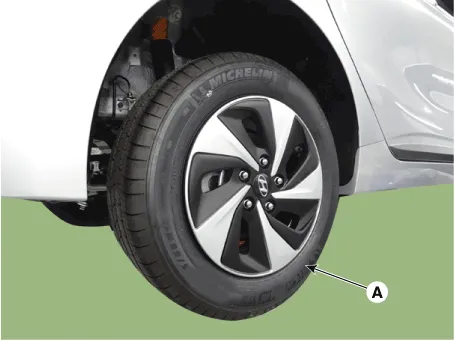

Remove the rear wheel and tire (A) from the rear hub.
Tightening torque :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)


•
Be careful not to damage the hub bolts when removing the rear wheel and tire (A).
3.

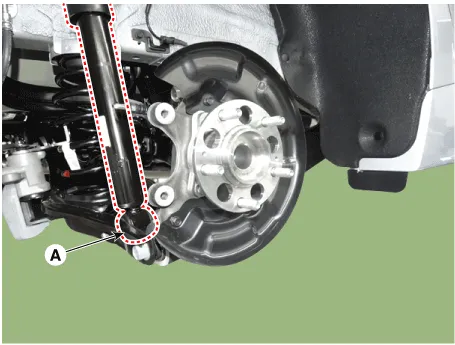

Loosen the bolt & nut and then remove the rear shock absorber (A) from the rear lower arm.
Tightening torque :
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

4.

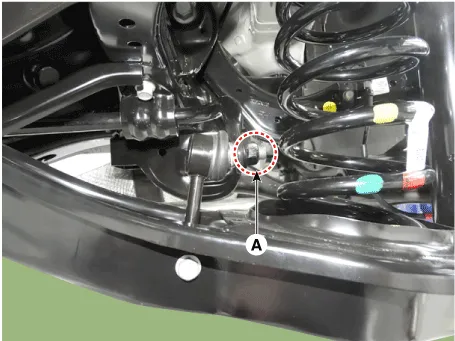

Loosen the nut and then remove the rear stabilizer link (A).
Tightening torque :
58.8 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.9 lb-ft)


•
When loosening the nut (A), fix the outer hexagon of stabilizer bar link.

5.

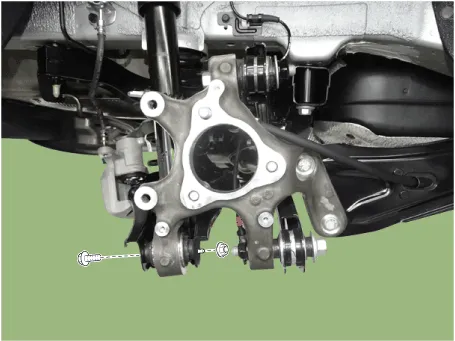

Loosen the bolt & nut and then remove the rear lower arm from the rear axle.
Tightening torque :
137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)


•

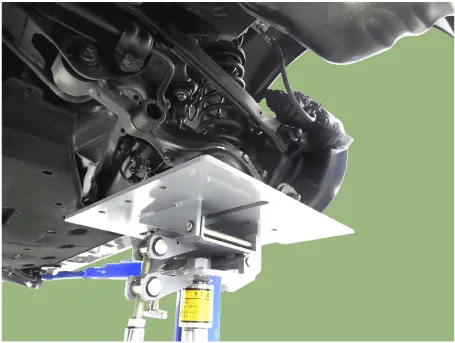

Set up the transmission jack under the lower arm in order to remove it in no-load condition.

6.

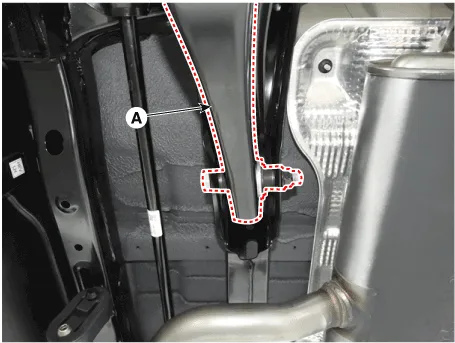

Loosen the bolt & nut and then remove the rear lower arm (A) from the rear cross member.
Tightening torque :
107.9 - 117.7 N.m (11.0 - 12.0 Kgf.m, 79.6 - 86.8 lb-ft)

7.

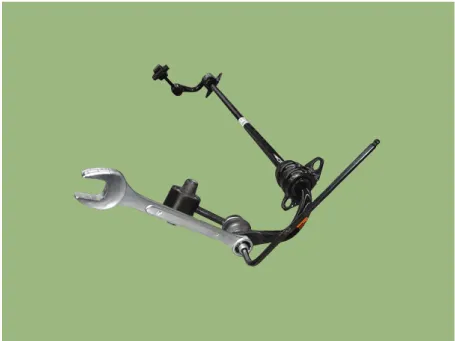

Remove the stabilizer link from the rear lower arm.
Tightening torque :
19.6 - 29.4 N.m (2.0 - 3.0 Kgf.m, 14.5 - 21.7 lb-ft)

8.
Install in the reverse order of removal.
9.
Check the alignment.
(Refer to Tires/Wheels - "Alignment")
Inspection
1.
Check the bushing for wear and deterioration.
2.

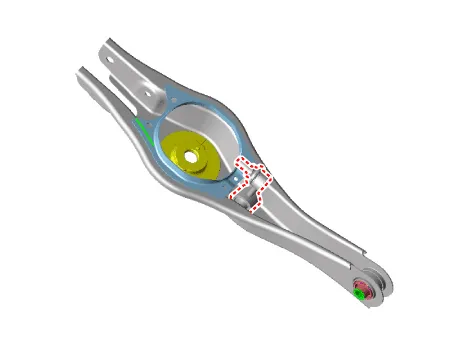

Check the rear lower arm for deformation.
3.
Check for all bolts and nut.
4.
Check the cracks or the cutting of the lower .
