Hyundai Ioniq (AE): Rear Seat Belt / Rear Seat Belt Buckle. Components and components location

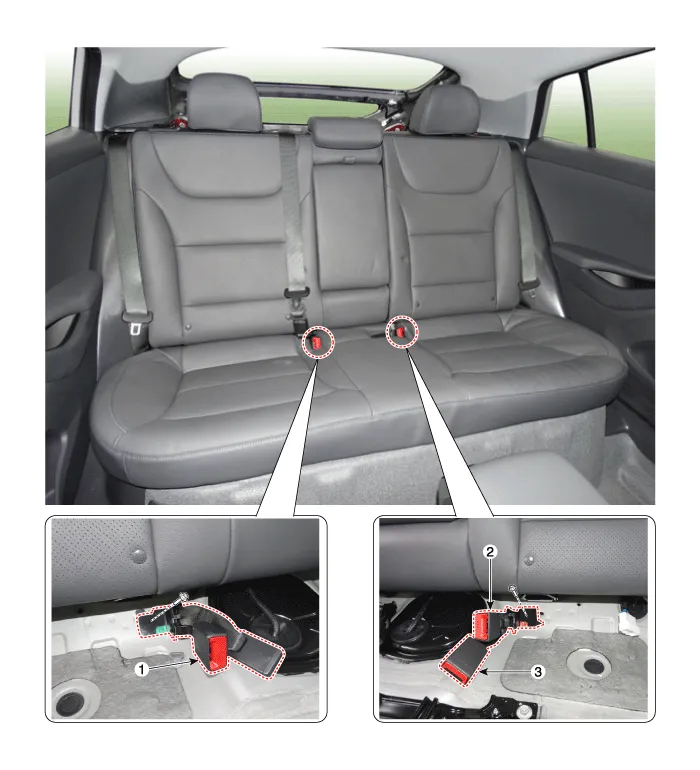

| Component Location |
| 1. Rear seat belt buckle [RH] 2. Rear seat belt buckle [LH] | 3. Rear center seat belt buckle |
Replacement • When installing the belt, make sure not to damage the retractor.1.Remove the rear seat back cover.
Replacement1.Remove the rear seat cushion assembly.(Refer to Rear Seat - "Rear Seat Cushion Assembly")2.Loosen the mounting bolt, remove the rear seat belt buckle (A).
