Replacement

•
When installing the belt, make sure not to damage the retractor.
1.
Remove the rear seat back cover.
(Refer to Rear Seat - "Rear Seat Back Cover")
2.

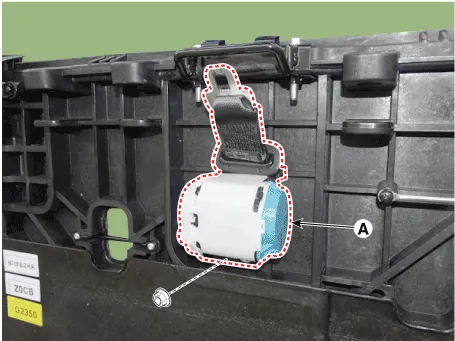

After loosening the mounting bolts, remove the rear center seat belt retractor (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

3.
To install, reverse the removal procedure.

•
Replace any damaged clips.

    Component Location 1. Rear center seat belt retractor

    Component Location 1. Rear seat belt buckle [RH]2. Rear seat belt buckle [LH]3. Rear center seat belt buckle
