Hyundai Ioniq (AE): Rear Seat Belt / Rear Center Seat Belt Retractor. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Center Seat Belt Retractor. Components and components location

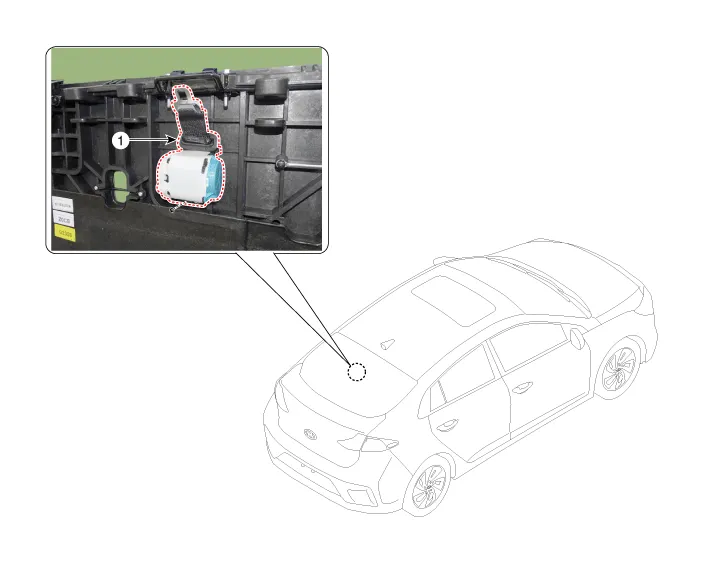

Component Location

1. Rear center seat belt retractor


    Replacement    â€¢ When installing the belt, make sure not to damage the retractor. 1.Remove the rear pillar trim.

    Replacement    â€¢ When installing the belt, make sure not to damage the retractor.1.Remove the rear seat back cover.
