Replacement

•
When installing the belt, make sure not to damage the retractor.
1.
Remove the rear pillar trim.
(Refer to Interior Trim - "Rear Pillar Trim")
2.

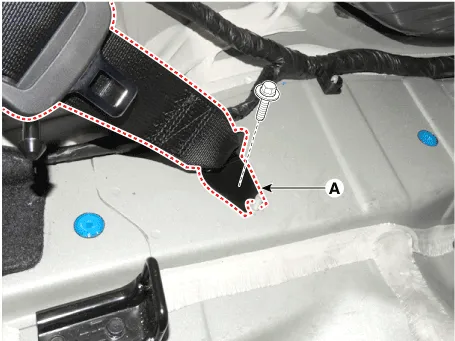

After loosening the mounting bolt, remove the rear seat belt lower anchor (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

3.

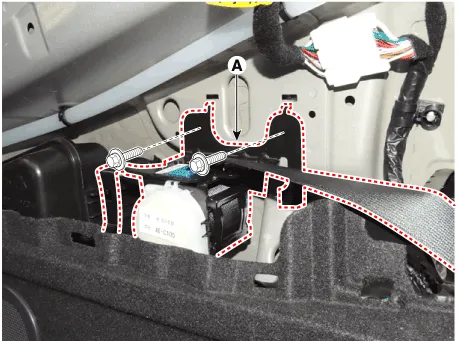

After loosening the mounting bolts, remove the rear seat belt retractor (A).

4.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Rear seat belt retractor

    Component Location 1. Rear center seat belt retractor
