Hyundai Ioniq (AE): Rear Seat Belt / Rear Seat Belt Retractor. Components and components location

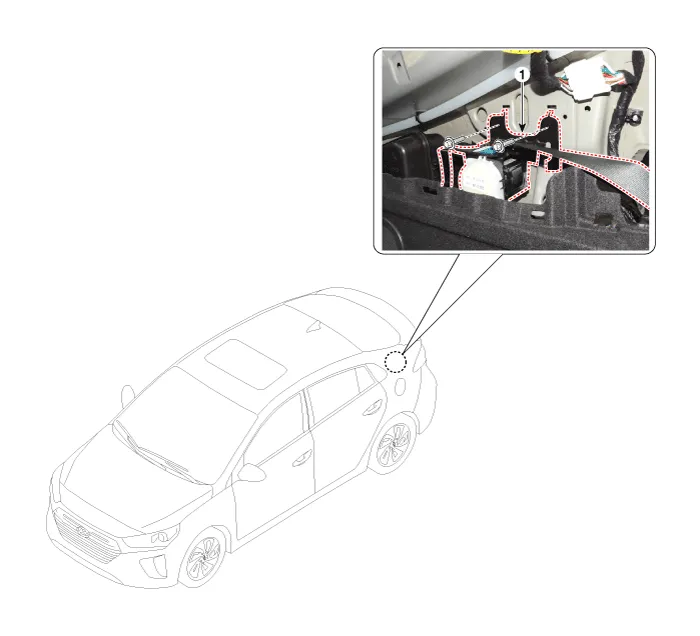

| Component Location |
| 1. Rear seat belt retractor |
Components1. Rear seat belt retractor2. Rear center seat belt retractor 3. Center seat belt 4. Rear seat belt buckle5. Rear seat belt buckle [LH]
Replacement • When installing the belt, make sure not to damage the retractor. 1.Remove the rear pillar trim.
