Hyundai Ioniq (AE): Rear Seat Belt / Components and components location

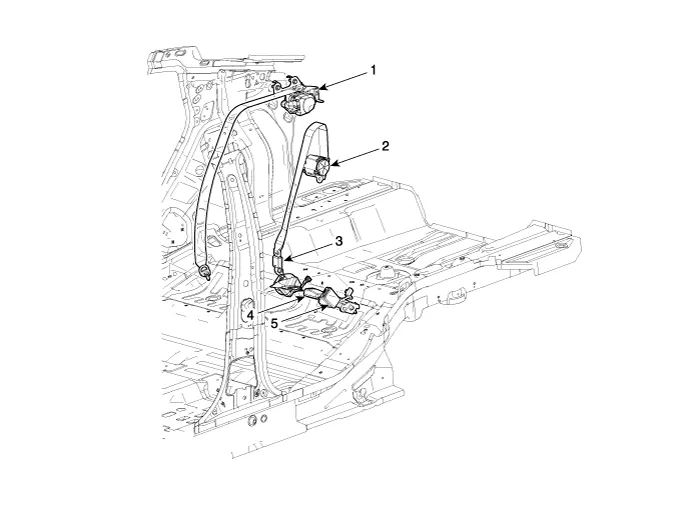

Components

1. Rear seat belt retractor
2. Rear center seat belt retractor
3. Center seat belt
4. Rear seat belt buckle
5. Rear seat belt buckle [LH]

    Component Location 1. Rear seat belt retractor
