Hyundai Ioniq (AE): Specifications, Consumer information and Reporting safety defects / Refrigerant Label
The refrigerant label provides information such as refrigerant type and amount.

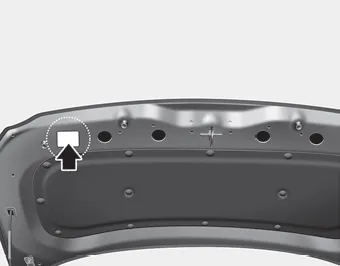

The label is located on the underside of the hood.
The engine number is stamped on the engine block as shown in the drawing.
