Hyundai Ioniq (AE): Trunk Trim / Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Trunk Trim / Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.
Remove the rear seat back assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
3.
Remove the rear door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
4.
After loosening the mounting bolts, then remove the shift side trim covering (A).
5.
Remove the luggage covering mat (B).
6.
Remove the rear transverse trim (C).
7.
After loosening the mounting screws, remove the luggage side trim (D).
8.
To install, reverse the removal procedure.

•
Replace any damaged clips.

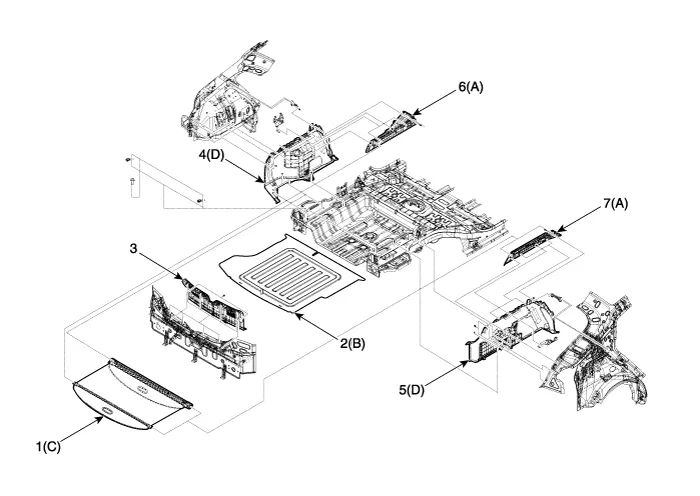

[General type]

1. Cargo screens
2. Rear transverse trim
3. Luggage mat
4. Luggage side trim [LH]
5. Luggage side trim [RH]
6. Shift side trim covering [LH]
7. Shift side trim covering [RH]

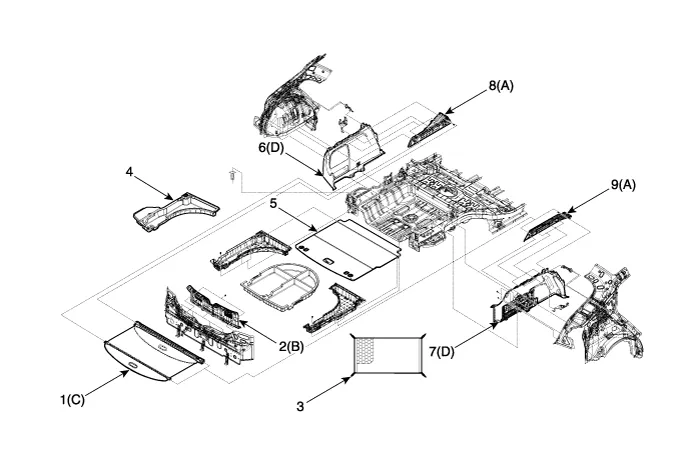

[Wooper type]

1. Cargo screens
2. Rear transverse trim
3. Luggage mat
4. Luggage side tay assembly
5. Luggage board
6. Luggage side trim [LH]
7. Luggage side trim [RH]
8. Shift side trim covering [LH]
9. Shift side trim covering [RH]
