Hyundai Ioniq (AE): Rear View Monitor (RVM) / Schematic diagrams

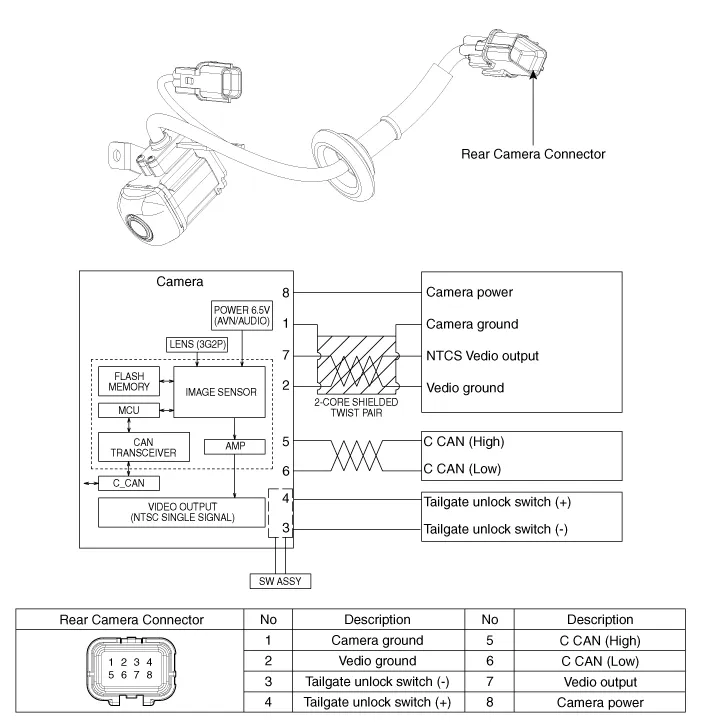

| Circuit Diagram |
Component Location1. Rear view camera2. AVN monitor
DescriptionRear view monitor (RVM) will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position.This system is a supplemental system that shows behind the vehicle through the AV monitor while backing-up.
