Hyundai Ioniq (AE): Fuel Pressure Control Valve (FPCV) / Schematic diagrams

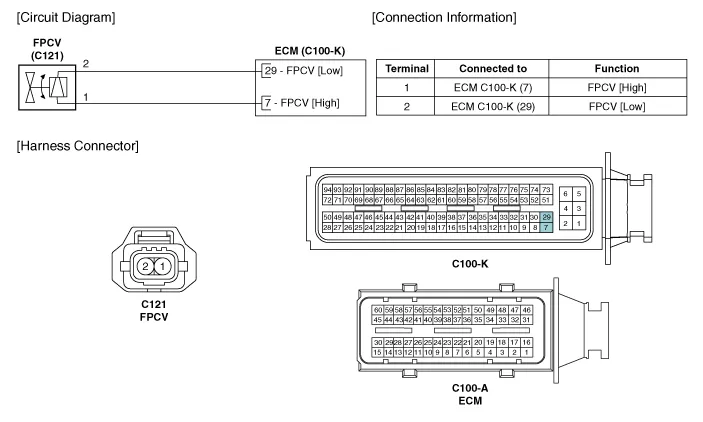

| Circuit Diagram |
Signal Waveform
Inspection1.Turn the ignition switch OFF and disconnect the battery negative (-) cable.2.Disconnect the fuel pressure regulator valve connector.3.Measure resistance between the fuel pressure regulator valve terminals 1 and 2.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Mode Control Actuator. Repair procedures
Inspection1.Turn the ignition switch OFF.2.Disconnect the mode control actuator connector.3.Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.Verify that the mode control actuator operates to the vent mode when connected in reverse.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Description and operation
DescriptionRear corner radar is a system that uses two magnetic wave radar sensors attached on the rear panel to measure the distance from the following vehicles and provides the sensing and (visual and auditory) alarm of any vehicle coming into the blind spot.
