Hyundai Ioniq (AE): Button Engine Start System / Start/Stop Button. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / Button Engine Start System / Start/Stop Button. Repair procedures

Removal
1.
Disconnect the negative(-) battery terminal.
2.
Remove the crash ped lower panel.
(Refer to Body - "Crash Ped Lower Panel")
3.

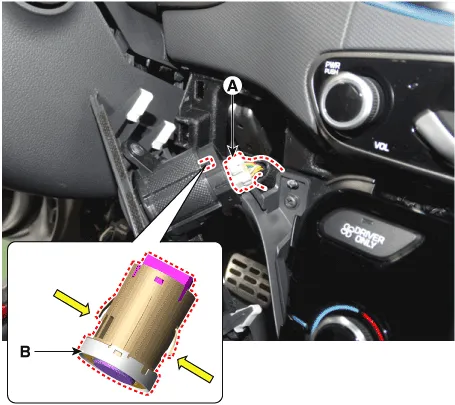

Remove the start/stop button (B) after disconnect the connector (A).

Installation
1.
Install the start/stop button.
2.
Install the crash pad lower panel.
3.
Connect the negative (-) battery terminal.
