Hyundai Ioniq (AE): Button Engine Start System / Start/Stop Button. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / Button Engine Start System / Start/Stop Button. Components and components location

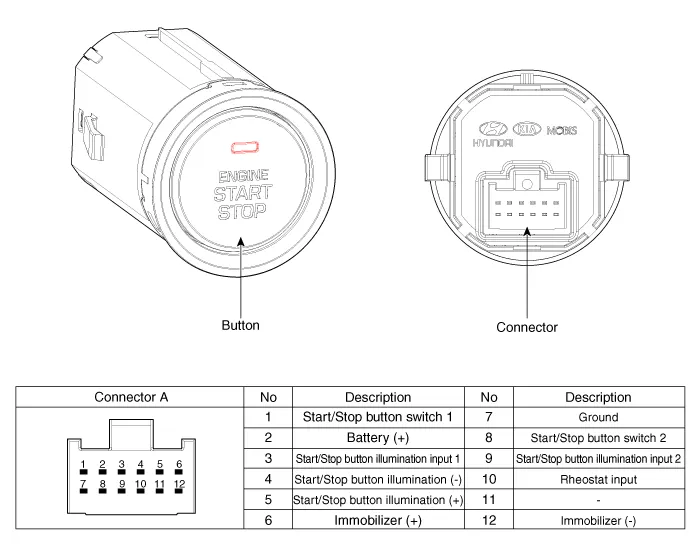

Component

❮Description and operation

DescriptionSystem OverviewThe System offers the following features:– Human / machine interface through a 1-stage button, for terminal switching and engine start.

Start/Stop Button. Repair procedures❯

Removal1.Disconnect the negative(-) battery terminal.2.Remove the crash ped lower panel.(Refer to Body - "Crash Ped Lower Panel")3.Remove the start/stop button (B) after disconnect the connector (A).
