Hyundai Ioniq (AE): Blower / Climate Control Air Filter. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Heating, Ventilation and Air Conditioning / Blower / Climate Control Air Filter. Repair procedures

Replacement
1.
Disconnect the air damper (A) from the glove box (B).

2.

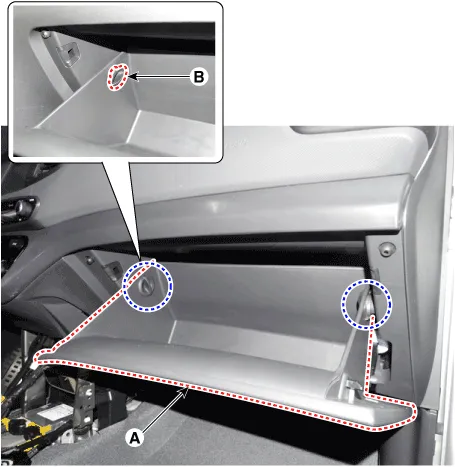

Remove the stopper (B) from the glove box (A).

3.

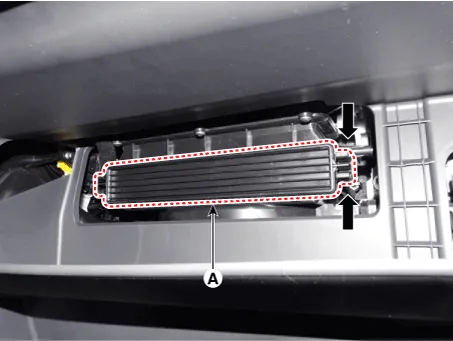

Remove the filter cover (A) by pressing the knob.

4.

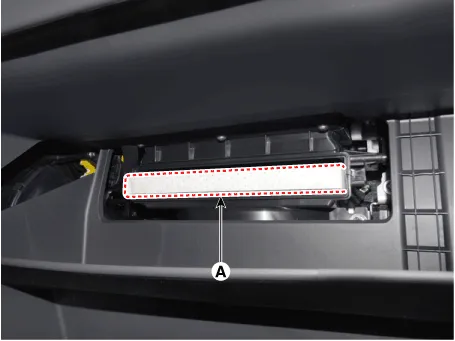

Replace the air filter (A) with a new one according to the direction of air filter.


•
To remove the filter easily, press the right side inward then pull out the filter.
•
In case of driving in an air-polluted area or rugged terrain, check and replace the air filter as frequently as possible.
5.
To install, reverse the removal procedure.

    Description The climate control air filter is located in the blower unit. It eliminates foreign materials and odor. The particle filter performs a role as an odor filter as well as a conventional dust filter to ensure comfortable interior environment.

    Components Location1. Intake actuator
