Hyundai Ioniq (AE): Blower / Blower Motor. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Heating, Ventilation and Air Conditioning / Blower / Blower Motor. Repair procedures

Inspection
1.

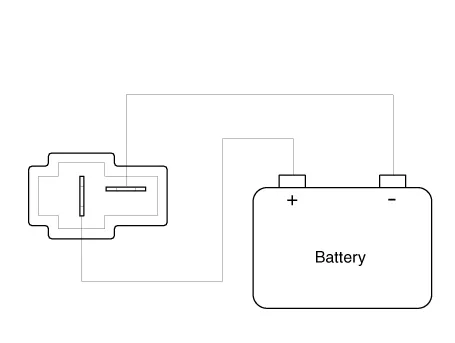

Connect the battery voltage and check the blower motor rotation.

2.
If the blower motor does not operate well, substitute with a known-good blower motor and check for proper operation.
3.
Replace the blower motor if it is proved that there is a problem with it.
Replacement
1.
Disconnect the negative (-) battery terminal.
2.

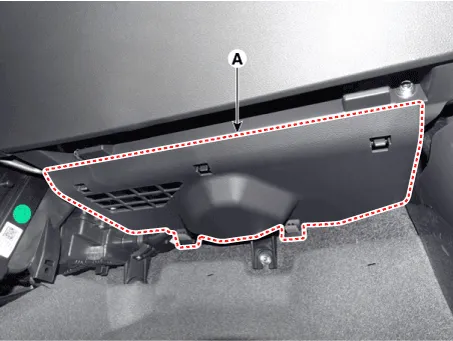

To remove the crash pad under cover [RH] (A), press both sides of the locking pin and then pull it down.

3.

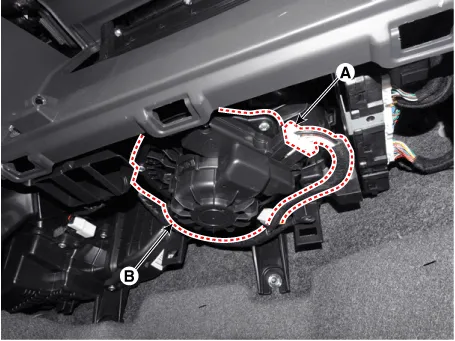

Disconnect the blower motor connector (A) and then remove the blower motor (B) after loosening the screws.

4.
To install, reverse the removal procedure.

    Replacement    When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

    Description The climate control air filter is located in the blower unit. It eliminates foreign materials and odor. The particle filter performs a role as an odor filter as well as a conventional dust filter to ensure comfortable interior environment.
