Hyundai Ioniq (AE): Roof Trim / Sunvisor. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Roof Trim / Sunvisor. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
•
Take care not to bend or scratch the trim and panels.
1.

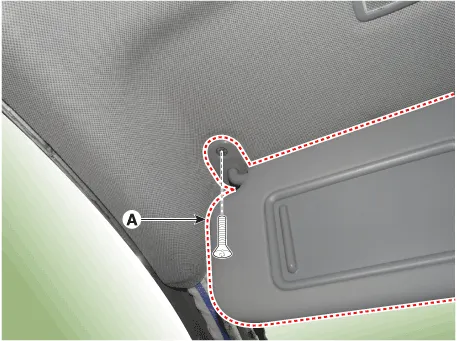

Loosen the mounting screw and seperate the sunvisor (A).

2.

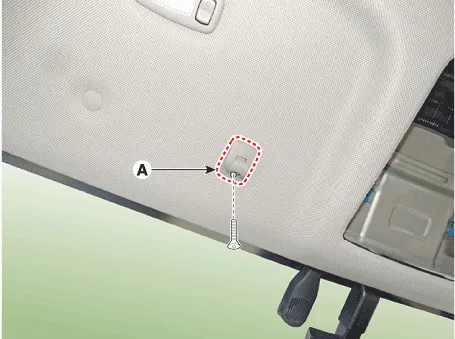

Loosen the mounting screws and remove the retainer (A).

3.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Sunvisor2. Retainer

    Component Location 1. Assist handle
