Hyundai Ioniq (AE): Roof Trim / Sunvisor. Components and components location
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Roof Trim / Sunvisor. Components and components location

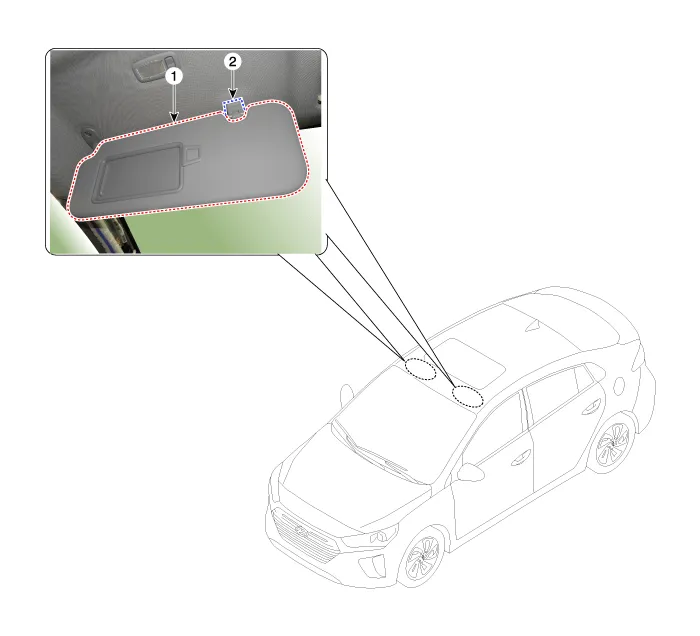

| Component Location |
| 1. Sunvisor | 2. Retainer |
Components (1)[General Type]1. Sunvisor [LH] 2. Sunvisor [RH] 3. Assist handle4. Roof trimComponents (2)[Sunroof Type]1. Sunvisor [LH] 2. Sunvisor [RH] 3.
Replacement • Put on gloves to prevent hand injuries. • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
