Hyundai Ioniq (AE): Trickle Charge / Charging Status Indicator Lamp for Portable Charger

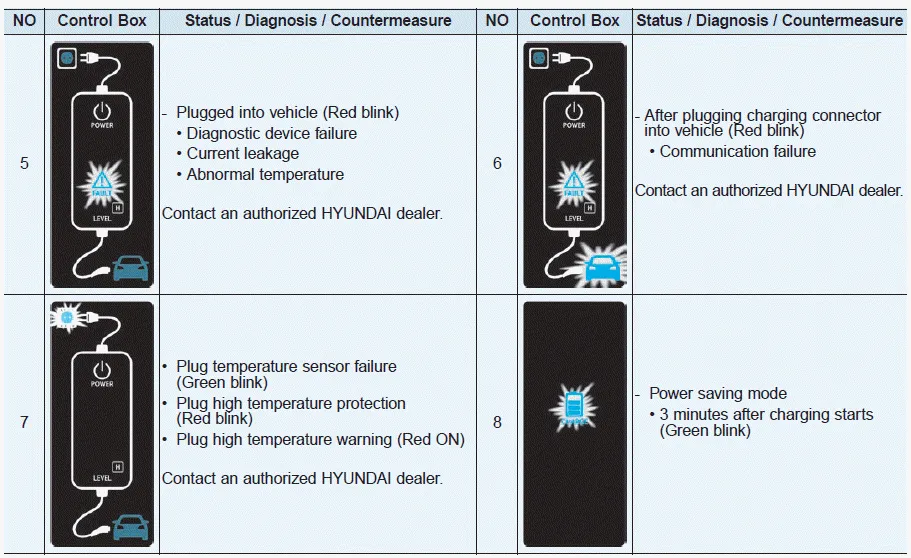

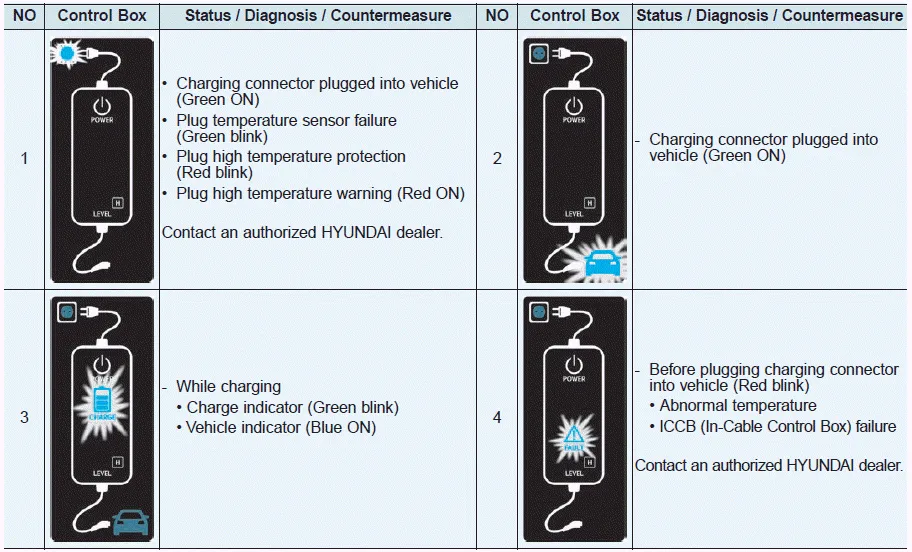

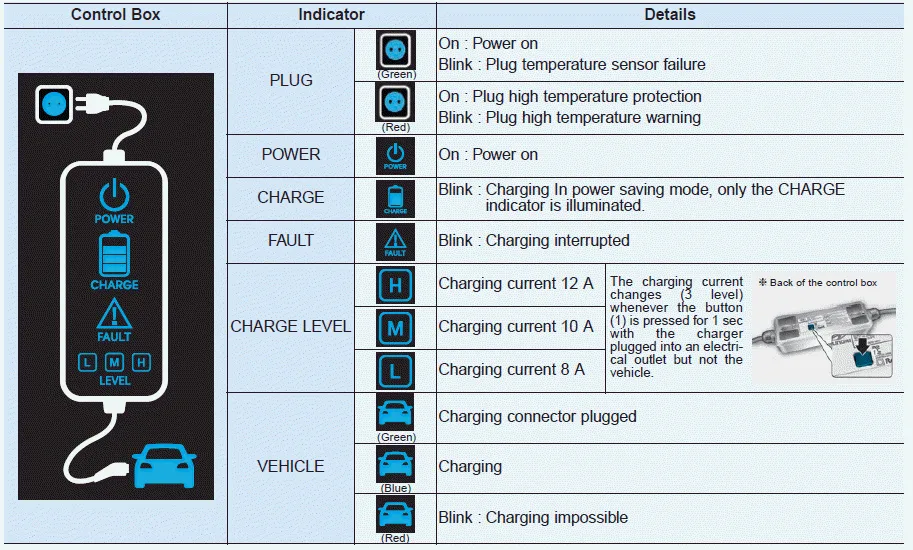

Hyundai Ioniq. Charging Status Indicator Lamp for Portable Charger

Hyundai Ioniq. Charging Status Indicator Lamp for Portable Charger

Hyundai Ioniq. Charging Status Indicator Lamp for Portable Charger

    When charging the high voltage battery, the charge level can be checked from outside the vehicle.

    1. Hold the charging connector handle and pull it while pressing the release button (1). Information To prevent charging cable theft, the charging connector cannot be disconnected from the inlet when the doors are locked.
