Hyundai Ioniq (AE): Charging the Plug-in Hybrid Vehicle / Trickle Charge

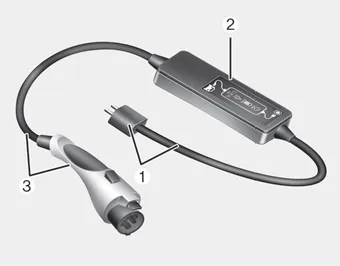

■ Portable Charger
(1) Code and Plug (Code set)
(2) Control Box
(3) Charging Cable and Charging Connector
Trickle Charge can be used when Normal Charge is not available by using household electricity.
- How to set the charge level of the portable charger
- How to Connect Portable Charger (ICCB: In-Cable Control Box)
- Checking Charging Status
- Charging Status Indicator Lamp for Portable Charger
- How to Disconnect Portable Charger (ICCB: In-Cable Control Box)
- Unlock Charging Connector in Emergency, Precautions for Portable Charger
If the charging connector does not disconnect due to battery discharge and failure of the electric wires, open the hood and slightly pull the emergency cable.
1. Check the rated current of the electric outlet prior to connecting the plug to the outlet. 2. Connect the plug to a household electric outlet. 3. Check the display window on the control box.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: PTC Heater. Repair procedures
InspectionOperating Logic Test (Manual only)Inspect the PTC operation by confirmation logic as follows.1.Entering(1)Set the Floor mode and maximum heating position.(2)Turn off the blower switch.(3)Press the intake (recirculation) button 5 times or more.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Schematic diagrams
System Block DiagramComponent Parts and Function Outline Component part Function Vehicle-speed sensor, ESP/ABS Control ModuleConverts vehicle speed to pulse.VCUReceives signals from sensor and control switches.
