Hyundai Ioniq (AE) 2017-2025 Service Manual / Body (Interior and Exterior) / Front Seat / Components and components location

Components

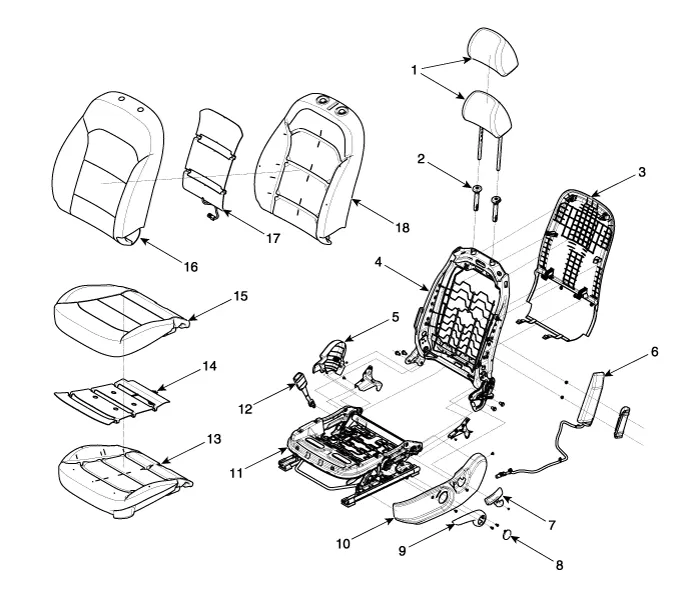

[General Type]

1. Front seat headrest
2. Front seat headrest guide
3. Front seat back board
4. Front seat back frame assembly
5. Front seat shield inner cover
6. Front seat SAB module
7. Recliner lever
8. Height lever cap
9. Height lever
10. Front seat shield outer cover
11. Front seat cushion frame assembly
12. Front seat belt buckle
13. Front seat cushion pad
14. Front seat cushion heater mat
15. Front seat cushion cover
16. Front seat back cover
17. Front seat back heater
18. Front seat back pad

[Power Type]

1. Front seat headrest
2. Front seat headrest guide
3. Front seat back board
4. Front seat back frame assembly
5. Front seat shield inner cover
6. Front seat SAB module
7. Front seat shield outer cover
8. Front seat cushion frame assembly
9. Front seat belt buckle
10. Front seat cushion pad
11. Front seat cushion heater mat
12. Front seat cushion cover
13. Front seat back cover
14. Front seat back heater
15. Front seat back pad
