Hyundai Ioniq: Audio / Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Body Electrical System / Audio / Components and components location

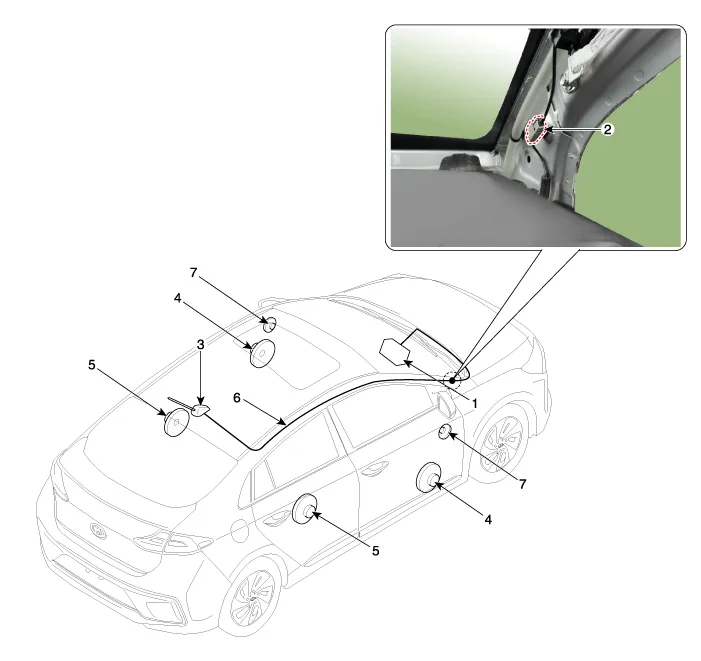

Component Location

1. Audio unit
2. Antenna feeder cable connector
3. Roof antenna (Audio)
4. Front door speaker
5. Rear door speaker
6. Antenna feeder cable
7. Tweeter speaker

    Specifications

    SpecificationsAudio Items AUDIO ModelRADIO/CD/MP3Power supplyDC 14.4VParasitic currentMax...

    Audio Unit. Components and components location

    Components[RADIO/CD/MP3]Connector Pin Information No Connector A Connector B 1Rear speaker (LH +)-2Rear speaker (LH -)Mic (+)3--4--5-Antenna power6Camera powerIllumination (+)7Camera vidio inputMM CAN (+)8--9--10-Battery (+)11DTCBattery (+)12Steering key signalGround13Front speaker (LH +)Ground14Front speaker (LH -)-15Front speaker (RH -)Mic (-)16Front speaker (RH +)-17--18- -19-Illumination (-)20Camera power groundMM CAN (-)21Camera video ground-22-ACC23--24--25--26Steering key ground-27Rear speaker (RH -)-28Rear speaker (RH +)-29--30--31-IGN 332Camera(NC...
