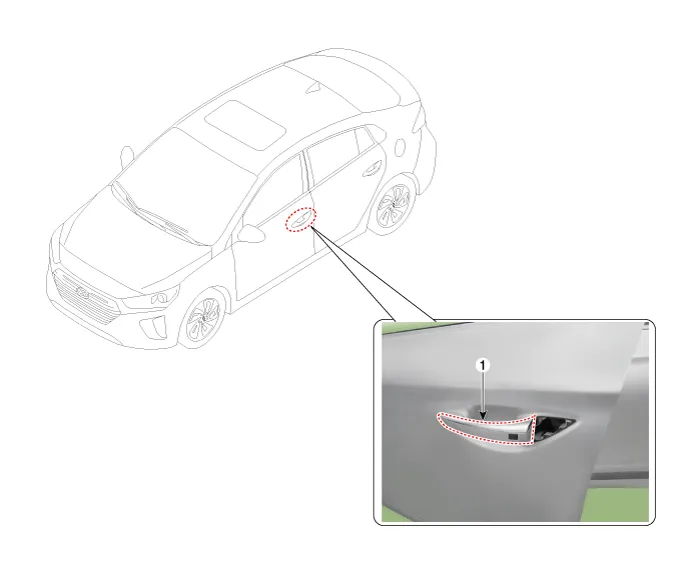

Hyundai Ioniq: Front Door / Front Door Outside Handle. Components and components location

Front Door Module. Repair procedures

Replacement1.Remove the front door window glass.(Refer to Front Door - "Front Door Window Glass")2.Remove the front door outside handle.(Refer to Front Door - "Front Door Outside Module")3...

Front Door Outside Handle. Repair procedures

Replacement1.Remove the plug hole (B).2.After loosening the mounting bolt, remove the front door lock assembly (A). Tightening torque : 7...

Other information:

Hyundai Ioniq (AE) 2017-2025 Service Manual: Special service tools

S..

Hyundai Ioniq (AE) 2017-2025 Service Manual: Inspection

Inspection[Battery Pack Assembly Troubleshooting Chart]    • For SOC check, refer to "SOC Inspection"• For voltage check, refer to "Battery Voltage Inspection"• For battery voltage sensing circuit, refer to "Voltage Sensing Circuit Inspection"• For isolation resistance check, refer to "Isolation Resistance Inspection" [SOC Level and Follow-up] SOC Symptom Warning Lamp Follow-up MIL Service Fuel • Normal ---  10 - 15% • Motor torque limite (Acceleration delay)--ON• Refuel and check the SOC againON--• Repair the MIL or Service Lamp related system• Charge the battery by starting the engine• Refuel if necessary ONON--ON-OnONON 5 - 10% • EV Mode inhibited • FATC Inhibited • LDC Inhibited --ON• Refuel and check the SOC againON--• Repair the MIL or Service Lamp related system• Charge the battery by starting the engine • Refuel if necessaryONON--ON-ONONON 0 - 5% • Impossible to start ON--• Repair the MIL or Service Lamp related system• Start the engine with GDS to charge the battery• Refuel if necessary ONON--ON-ONONON 0% ON--• Repair the MIL or Service Lamp related system• If necessary, Replace Battery Pack• Refuel if necessary [SOC Inspection]1...
