Hyundai Ioniq (AE): Front Door / Front Door Outside Handle. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Front Door / Front Door Outside Handle. Repair procedures

Replacement
1.

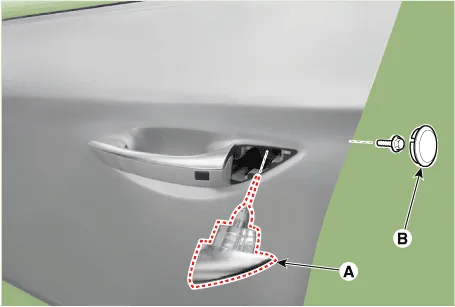

Remove the plug hole (B).
2.
After loosening the mounting bolt, remove the front door lock assembly (A).
Tightening torque :
7.8 - 10.8 N.m (0.8 - 1.1 kgf.m, 5.8 - 8.0 lb-ft)

3.

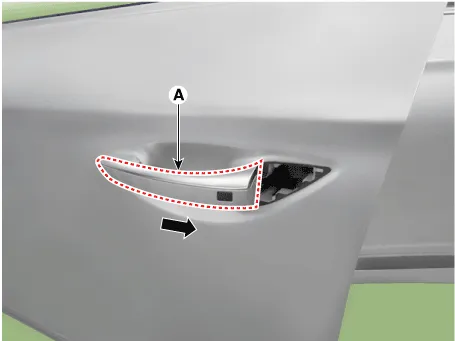

Remove the front door outside handle (A) by sliding it forward.

4.

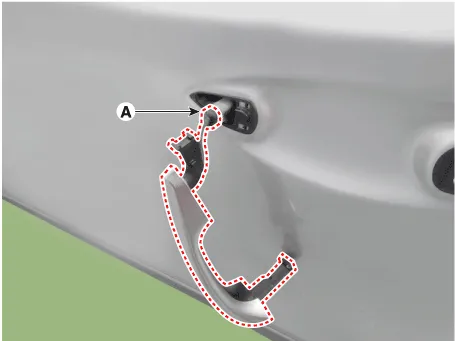

Disconnect the front door outside handle connector (A) by pushing the locking pin.

5.
To install, reverse the removal procedure.

•
Make sure the connector is connected properly.
•
Make sure the door locks / unlocks and opens / closes properly.
•

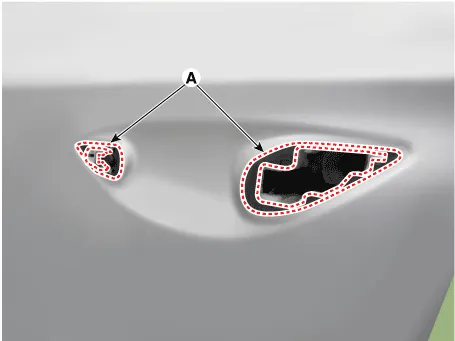

Be sure to install the outside handle pad (A) between the outside handle and the door panel.

    Component Location 1. Front door outside handle

    Replacement1.Pull down the front door window glass to the lowest level by pressing the power window glass switch.2.After loosening the mounting screws, remove the front door belt outside weatherstrip (A).
