Hyundai Ioniq (AE): Front Door / Front Door Outside Handle. Components and components location

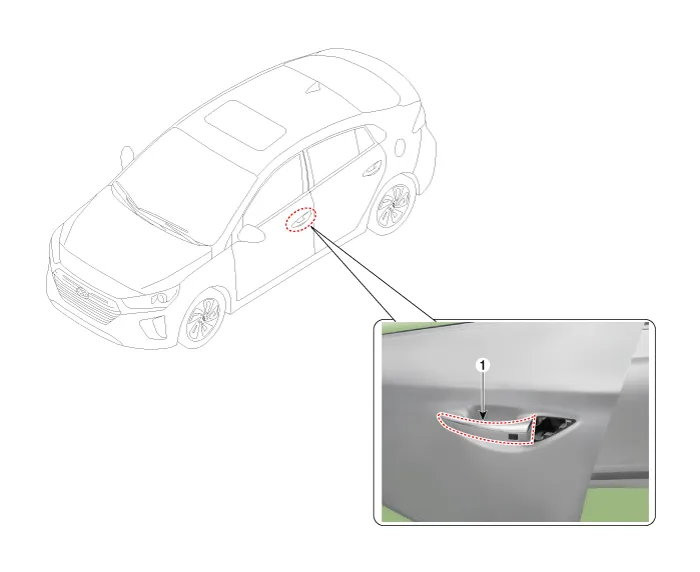

| Component Location |
| 1. Front door outside handle |
Replacement1.Remove the front door window glass.(Refer to Front Door - "Front Door Window Glass")2.Remove the front door outside handle.(Refer to Front Door - "Front Door Outside Module")3.
Replacement1.Remove the plug hole (B).2.After loosening the mounting bolt, remove the front door lock assembly (A). Tightening torque : 7.
