Hyundai Ioniq (AE): Front Door / Front Door Belt Outside Weatherstrip. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Front Door / Front Door Belt Outside Weatherstrip. Repair procedures

Replacement
1.
Pull down the front door window glass to the lowest level by pressing the power window glass switch.
2.

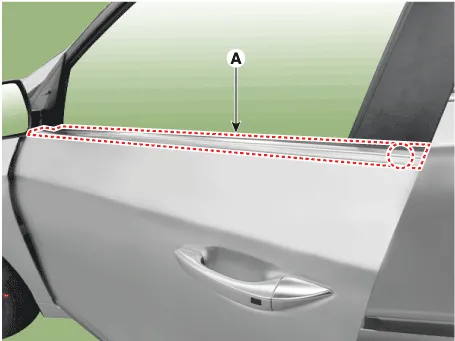

After loosening the mounting screws, remove the front door belt outside weatherstrip (A).
Tightening torque :
1.0 - 2.0 N.m (0.1 - 0.2 kgf.m, 0.7 - 1.4 lb-ft)

3.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).

    Replacement1.Remove the plug hole (B).2.After loosening the mounting bolt, remove the front door lock assembly (A). Tightening torque : 7.

    Replacement1.Remove the front door trim.(Refer to Front Door - "Front Door Trim")2.Remove the front door belt inside weatherstrip (A).3.To install, reverse the removal procedure.
