Hyundai Ioniq (AE): Front Door / Front Door Belt Inside Weatherstrip. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Front Door / Front Door Belt Inside Weatherstrip. Repair procedures

Replacement
1.
Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
2.

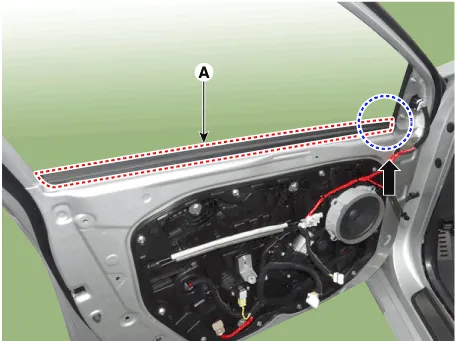

Remove the front door belt inside weatherstrip (A).

3.
To install, reverse the removal procedure.

•
When installing, install it by first contacting the inside part (basis point of assembly) of arrow to door frame.
•
Replace any damaged clips (or pin-type retainers).

    Replacement1.Pull down the front door window glass to the lowest level by pressing the power window glass switch.2.After loosening the mounting screws, remove the front door belt outside weatherstrip (A).

    Replacement[Front door side weatherstrip]1.Loosen the front door checker (B) mounting bolt. Tightening torque : 18.6 - 28.4 N.m (1.7 - 2.
