Hyundai Ioniq: Fuses And Relays / ICM (Integrated Circuit Module) Relay Box. Description and operation

Hyundai Ioniq (AE) 2017-2025 Service Manual / Body Electrical System / Fuses And Relays / ICM (Integrated Circuit Module) Relay Box. Description and operation

Description

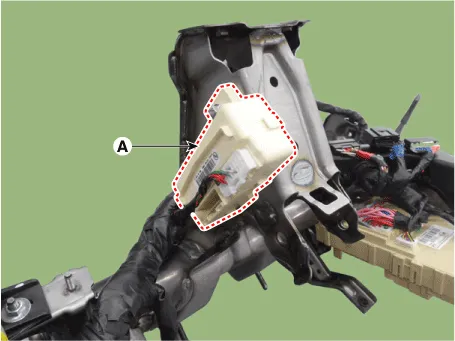

The ICM is united with many kinds of relays and installed over the instrument panel box.
