Hyundai Ioniq: Light Bulbs / Interior Light Bulb Replacement

Hyundai Ioniq (AE) 2017-2022 Owner's Manual / Maintenance / Light Bulbs / Interior Light Bulb Replacement

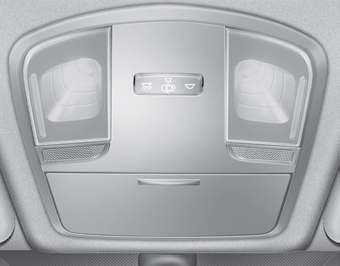

Map lamp and room lamp

Hyundai Ioniq. Interior Light Bulb Replacement

■ Map lamp (LED type)

Hyundai Ioniq. Interior Light Bulb Replacement

■ Room lamp (LED type)

Your vehicle is equipped with LED lamps. LED lamps do not have replaceable bulbs. If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer.

Map lamp, room lamp, vanity mirror lamp and luggage compartment lamp

Hyundai Ioniq. Interior Light Bulb Replacement

■ Map lamp (Bulb type)

Hyundai Ioniq. Interior Light Bulb Replacement

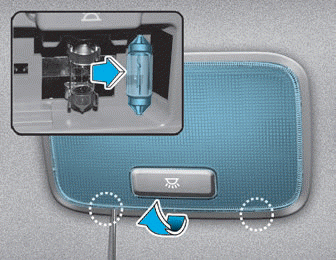

■ Room lamp (Bulb type)

Hyundai Ioniq. Interior Light Bulb Replacement

■ Vanity mirror lamp

Hyundai Ioniq. Interior Light Bulb Replacement

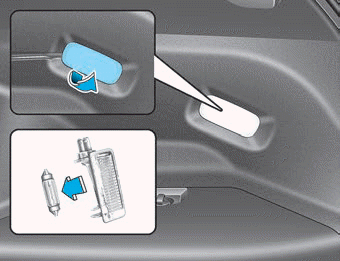

■ Luggage compartment lamp

1. Using a flat-blade screwdriver, gently pry the lens from the interior lamp housing.

2. Remove the bulb by pulling it straight out.

WARNING

Prior to working on the Interior Lights, ensure that the lamp is off to avoid burning your fingers or receiving an electric shock.

3. Install a new bulb into the socket.

4. Align the lens tabs with the interior lamp housing notches and snap the lens into place.

NOTICE

Use care not to dirty or damage lens, lens tab, and plastic housings.
