Hyundai Ioniq (AE): Fuel Delivery System / Accelerator Pedal. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Control/Fuel System / Fuel Delivery System / Accelerator Pedal. Repair procedures

Removal
1.
Turn the ignition seitch OFF and disconnect the battery negative (-) cable.
2.
Disconnect the accelerator position snesor connector (A).

3.

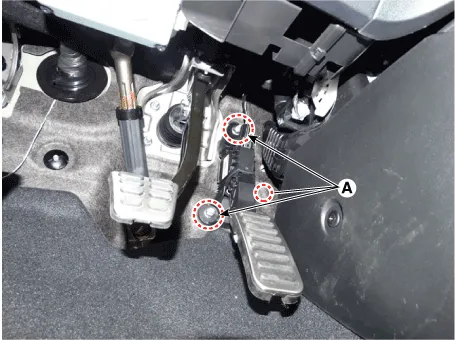

Remove the installation nut (A), and then remove the accelerator pedal module.

Installation
1.
Install in the reverse order of removal.
Accelerator pedal module installation nut :
12.7 - 15.7 N.m (1.3 - 1.6 kgf.m, 9.4 - 11.6 lb-ft)
