Hyundai Ioniq (AE): Parking Distance Warning (PDW) / Parking Distance Warning (PDW) Sensor. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Advanced Driver Assistance System (ADAS) / Parking Distance Warning (PDW) / Parking Distance Warning (PDW) Sensor. Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front / rear bumper cover.
(Refer to Body - "Front Bumper Cover")
(Refer to Body - "Rear Bumper Cover")
3.

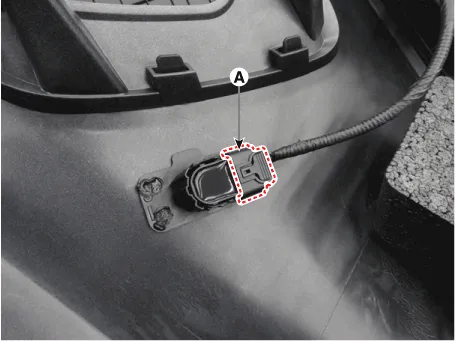

Disconnect the connector (A) from the parking assist sensor.

4.

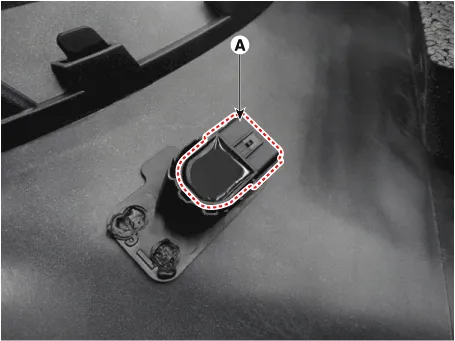

Remove the sensor (A) by pulling out both ends of the sensor holder.

Installation
1.
Install the rear ultra sensor after connecting the connector.
2.
Install the bumper cover.
3.
Connect the negative (-) battery terminal.

    Component

    Component
