Hyundai Ioniq (AE): AVN System / AVN Remote Controller. Components and components location
| Components |

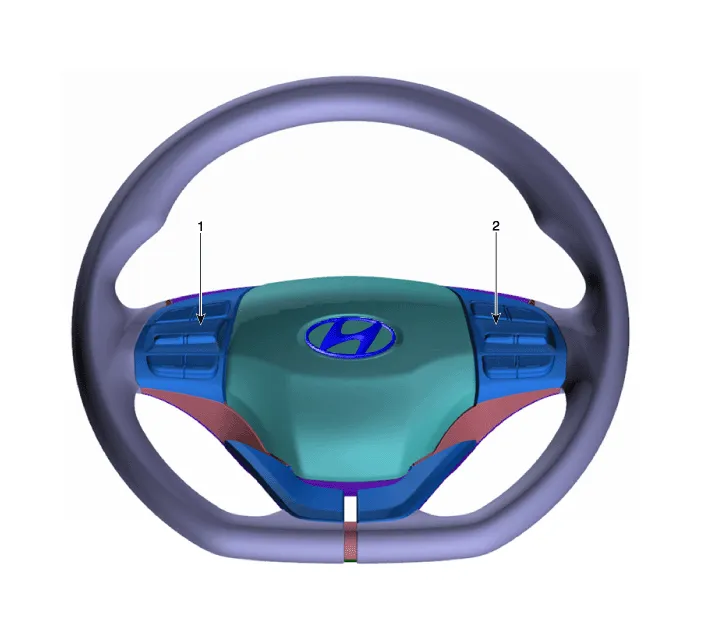

| 1. Left Remote Control Switch (Audio + Hands free) | 2. Right Remote Control Switch (Cruise+Trip Computer) |
Removal1.Disconnect the negative (-) battery terminal.2.Open the trunk, remove the right luggage side trim.(Refer to Body - "Luggage Side Trim")3.Remove the external amplifier after disconneting the connector (A) and loosening the mounting nuts.
Circuit Diagram[Audio+B/Tooth][Audio+B/Tooth+Voice][Trip][Trip+Cruise][Trip+Cruise+SCC]
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Auto Defoging Actuator. Repair procedures
Inspection1.Turn the ignition switch OFF. 2.Disconnect the auto defogging connector. 3.Verify that the auto defogging actuator operates to the open position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the auto defogging actuator operates to the close position when connected in reverse.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: High voltage shut-off procedures
High Voltage Shut-off Procedures • Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
