| Removal |
|
|
| Installation |
|
|
| Inspection |
|
| 1. | Connect the GDS to the Data Link Connector (DLC). |
| 2. | Turn the ignition switch ON. |

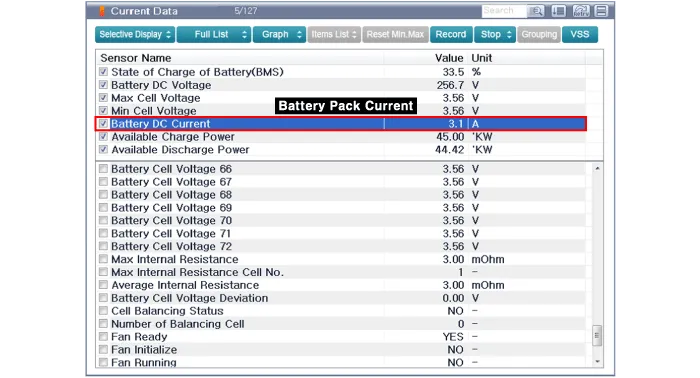

| 3. | Check the battery current in GDS service data.
|
Circuit Diagram
DescriptionThe main fuse is mounted in the safety plug and protects the high voltage battery and high voltage circuits from overcurrent.
Replacement1.Remove the battery (-) terminal.2.Remove the engine room under cover.(Refer to Engine Mechanical System - "Engine Room Under Cover")3.Remove the heater hose (A) and AEWP hose (B).4.Disconnect the lock pin to remove the heater hose pump connector (A).
