Hyundai Ioniq (AE): High Voltage Battery Control System / Main Fuse. Description and operation

Description

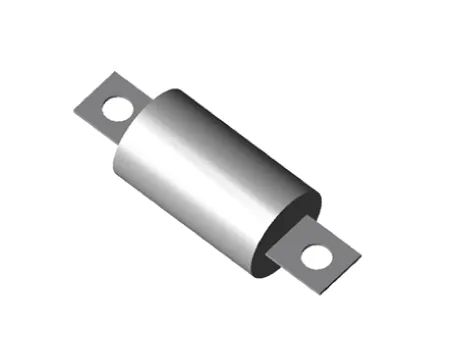

The main fuse is mounted in the safety plug and protects the high voltage battery and high voltage circuits from overcurrent.

    Removal    â€¢ Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system.

    Specification Item Value Rated voltage (V)400 (DC)Rated current (A)125 (DC)
