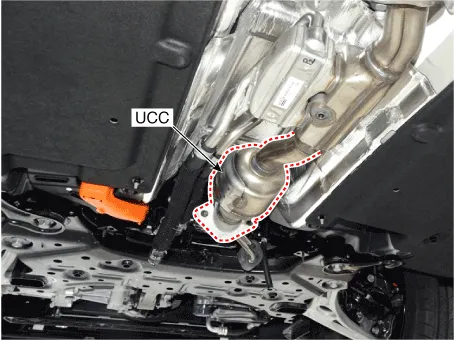

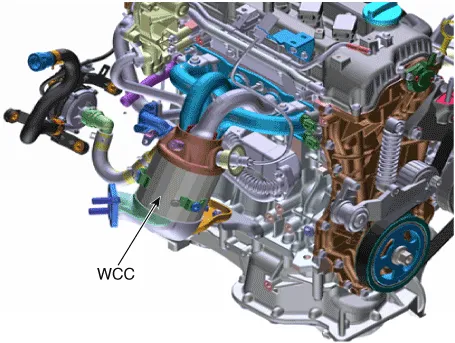

Hyundai Ioniq (AE): Exhaust Emission Control System / Catalytic Converter. Description and operation
| Description |
DescriptionExhaust emissions (CO, HC, NOx) are controlled by a combination of engine modifications and the addition of special control components.Modifications to the combustion chamber, intake manifold, camshaft and ignition system form the basic control system.
DescriptionContinuous Variable Valve Timing (CVVT) system advances or retards the valve timing of the intake and exhaust valve in accordance with the ECM control signal which is calculated by the engine speed and load.
