Hyundai Ioniq (AE): Charging the Plug-in Hybrid Vehicle / Charging Status

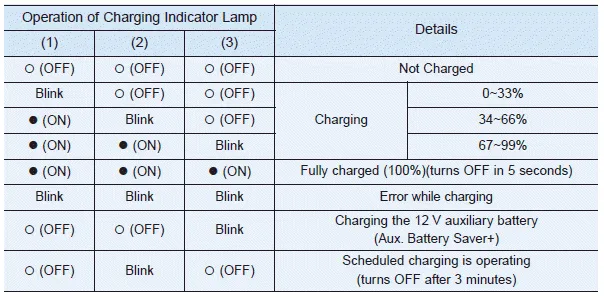

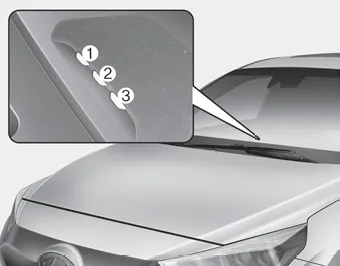

When charging the high voltage battery, the charge level can be checked from outside the vehicle.
Charging Information • Normal Charge : The plug-in hybrid vehicle is charged by plugging into a normal charger installed in your home or a public charging station.
You may select when the charging connector can be locked and unlocked in the charging inlet. Press the button to change between AUTO mode and LOCK mode.
