Hyundai Ioniq (AE): Cowl Top Cover / Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Cowl Top Cover / Components and components location

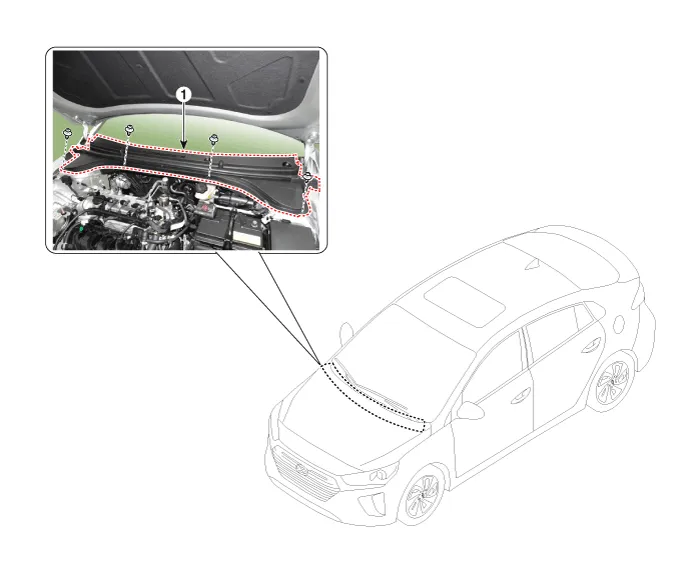

Component Location

1. Cowl top cover


    Replacement1.Remove the plug hole.2.Loosen the mounting nuts and remove the wiper arm (A). Tightening torque : 22.6 - 26.5 N.m (2.3 - 2.
